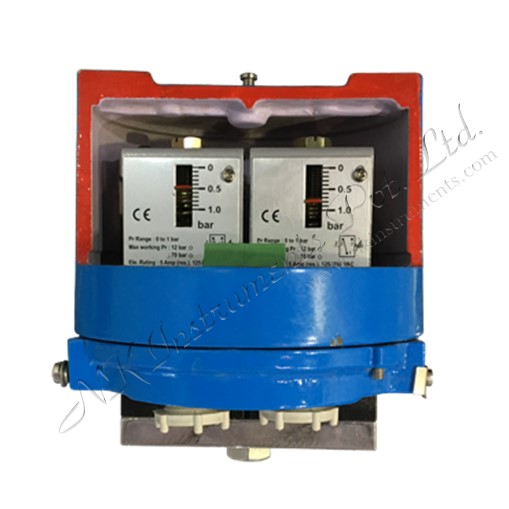

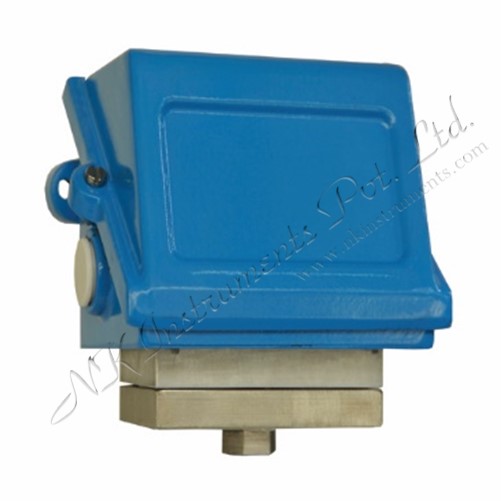

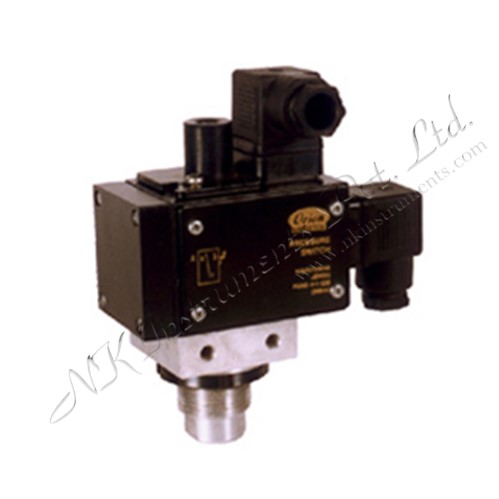

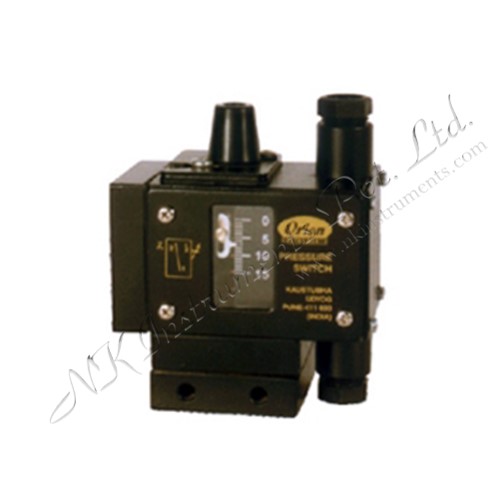

2 SPDT Pressure Switches

2 SPDT Pressure Switches

Various Pressure Ranges : from 0 to 1 Bar up to 0 to 400 Bar
Stage Difference (Dead Band between two switches) - Fixed Stage Differential or, Adjustable Stage Differential
Temperature Range : -10 to 80 Degree C (for high temperature use of impulse tube is advisable)
Accuracy : +/- 1% to 2% FS
No. of Switches : Two nos.
Type of Switches : Micro Switches - SPDT (5A 250 V AC or, 0.2 A 250 V DC.)
Sensing Element : Diaphragm (PTFE or Neoprene) or Piston
Enclosure : Weather Proof (IP 54), Water Proof (IP 65), Flameproof
Pressure Housing Aluminium, Brass, SS 316 or, special on request
Process Connection ” BSP (F) or, special on request
