Digital Velocity Meters - Insertion Paddle Wheel type

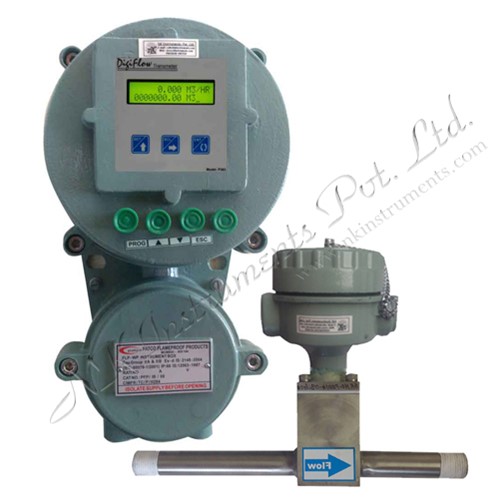

Velocity Meter (Models: P-181 or. F-181)

Type of Meter : Insertion Paddle Wheel type Velocity Meter

Max. % of Solids : 1% of fluid volume, non-abrasive, non-magnetic, <100 micron in dia. & length

Mounting : Field or, Panel

Pipe Line size : min. 15 mm up to 500 mm

Pressure drop : Less than 0.1 bar

Pulses : 4 Pulses each rotation

Accuracy : +/- 1% of Full Scale if velocity is more than 0.5 m/s

Repeatability : +/- 0.5%

Linearity : +/- 2% of full scale

Enclosure : Weather proof IP 65

Gland : PO7

Fitting material : ABS, SS304 or, SS316

Fitting Type : Threaded, Flanged, Weld on Adaptor

Velocity range : from 0.5 to 5.0 MPS

Max. Operating Temperature : 60°C for PP Sensor with ABS fittings & 100°C for SS Sensor with SS Fitting

Sensor Cable Length : 0.5 mtrs for Field Mounted Meter & 3 mtrs for Panel Mounted Meter

Paddle : PVDF (Magnetic up to 100°C & Non Magnetic up to 80°C)

Indicator Housing : Polycarbonate

O-rings/Pin : Viton / Hastealloy C

Sensor Rod : PP or, SS316

Max. Working Pressure : 7 kg/cm2 for PP Sensor with ABS fittings and

12 Kg/cm2 for SS Sensor with SS fitting.

Display : 16 X 1 alpha-numeric LCD display with Backlight

Indicator unit dimensions : 110 mm (H) X 110 mm (W) X 150 mm (D)

Field selectable Units : MPS

Supply : 230 V AC +/- 15%, 50 Hz

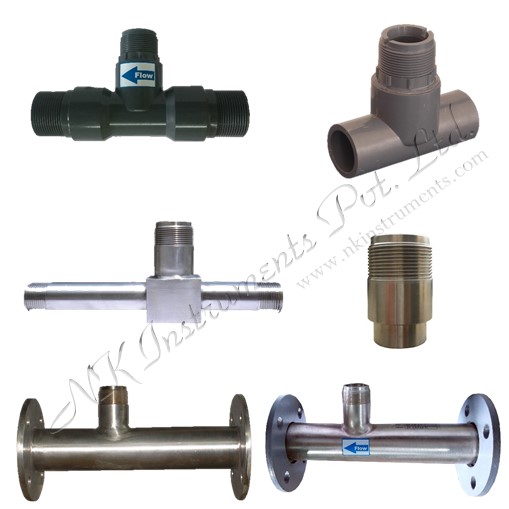

T Fitting : It is compulsory with PP or, SS 316 Flow Sensors (Selection from TYPE OF T-FITTINGS)
