Diaphragm Type Differential Pressure Gauges
Diaphragm Type Differential Pressure Gauges

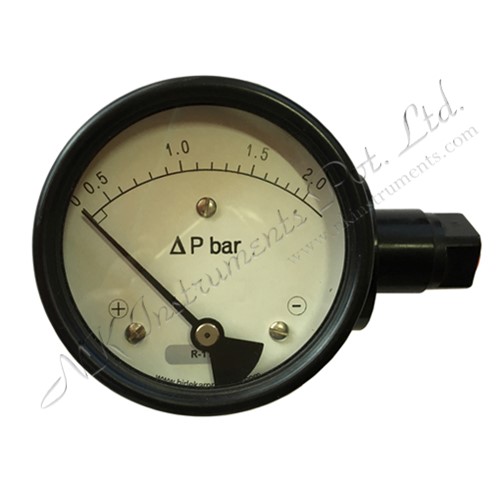

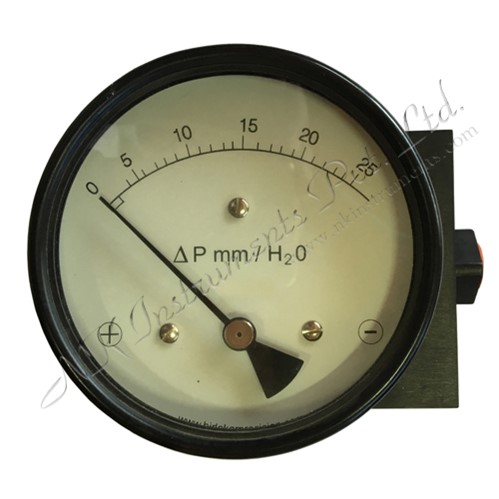

Magnetic coupling Diaphragm type Differential Pressure Gauge
(CE Certified model)
These gauges are suitable for Non-Magnetic Fluids only and more in demand for DP Measurement applications in HVAC and Filtration applications.
Ranges : Various DP ranges from 15 mm Wc uo to 7 bar

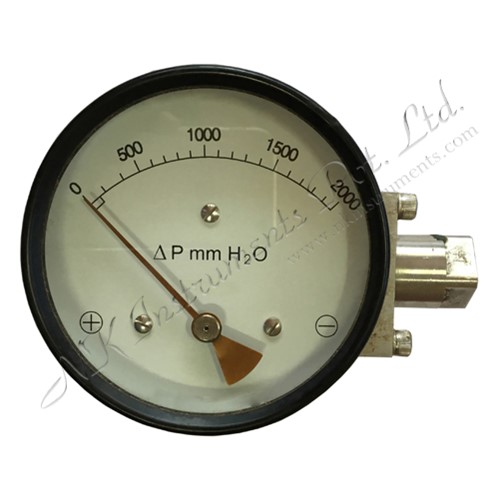

We can also offer Compound ranges in series DGC 300 and series MAGNETIC
Dial sizes : Various options like 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia.
Connection : 1/4” NPT-F (Optional Male)
Accuracy : + / - 2% FSD (Ascending)
Working Pressure : Various options up to 100 bar
Porting : Options like In – Line. Back or, Bottom
Calibration : Non-Linear, spread over 65 degrees to 75 degrees Arc.
Sensing Element : Small Convoluted Diaphragm
Wetted parts : Aluminium, Brass, SS 316, Inductrial Plastic, Buna N, Viton
Max. Working Temp.: Max. 80 degree C if Buna N is used and can be max. 200 degree C if Viton is used.
Enclosure : IP 65
Single or, Duel Reed Switch Contacts can be provided along with the DO Gage, either in IP 65 or, Flameproof enclosure.
