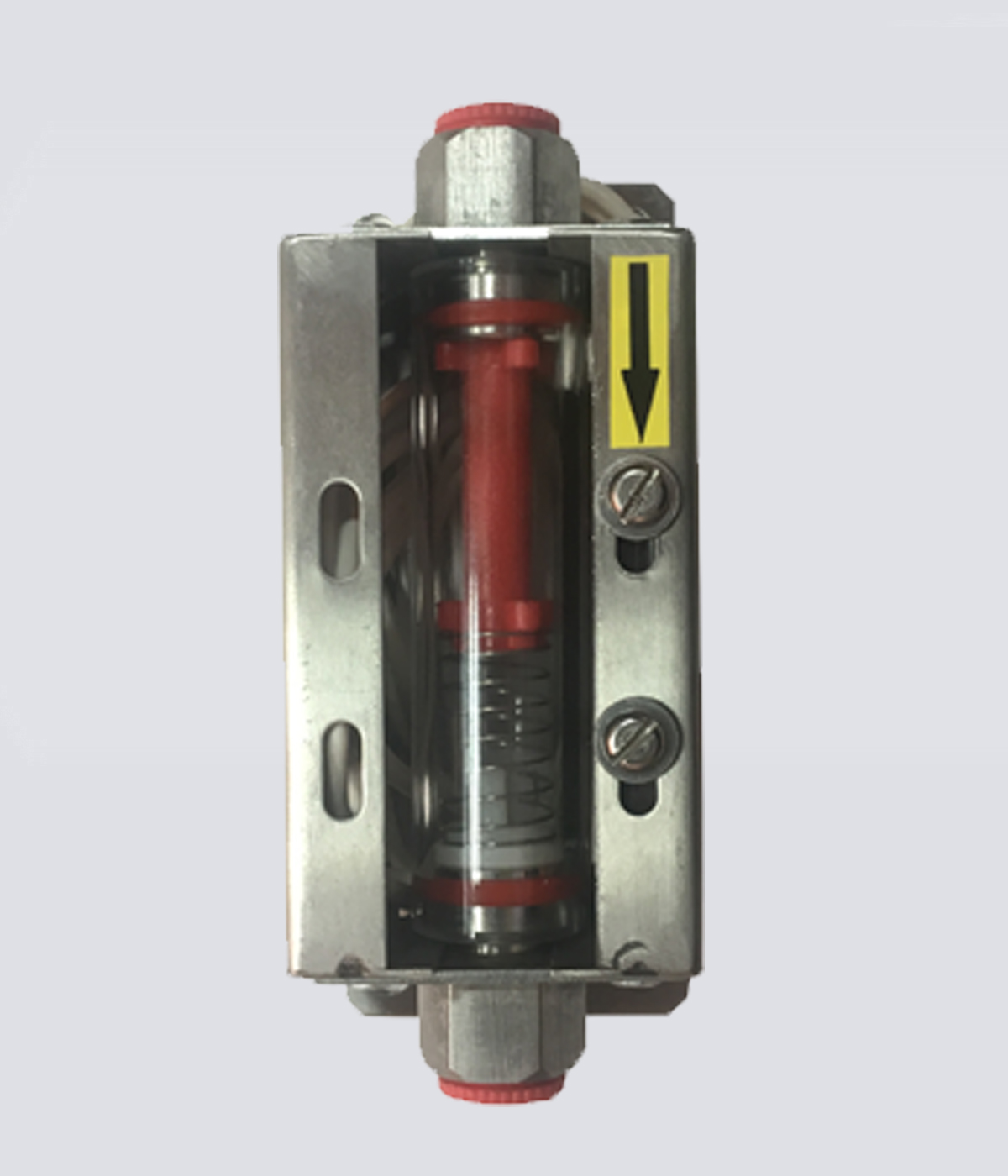

Indicating type Flow Switches
Indicating type Flow Switches
Series : WFS series
Service : Any free flowing liquid or gases
Max. Particle size should not be more than 150 microns
Mounting : Vertical or, Horizontal
Process connection : 1/4", 3/8", 1/2" or, 1?€?
Flow set point : single or, two nos. Field Settable
Electrical connection : 500 mm long two core wire Wetted Parts : SS 304 / Brass & Polycarbonate, for 25 & 30 mm Borosilicate Glass instead of Polycarbonate
Switch type : SPST (NO) Reed Switch (10 VA 230 VAC)
Switch setting : Adjustable
Repeatability : Better than +/- 1%
Accuracy : +/-2.0 %
Scale Tolerance : +/- 5% of Full Scale
Max. Working Pressure : 10 bar
Max. Working Temperature : 120 degree C
