The Rotating Paddle type Flow Sensors are suitable for any clear liquids. There are five types of Sensors with us.
*PP Flow Sensor- Magnetic (suitable for 6 bar pressure and 60 degree C)
*SS Flow Sensor- Magnetic (suitable for 10 bar pressure and 100 degree C)
*SS Flow Sensor- Non-magnetic (suitable for 10 bar pressure and 60 degree C)
*SS Flow Sensor Flameproof- Magnetic (suitable for 10 bar pressure and 100 degree C)
*SS Flow Sensor Flameproof- Non-magnetic (suitable for 10 bar pressure and 60 degree C)
Max. % of Solids : 1% of fluid volume, non-abrasive, non-magnetic, micron in dia.& length.
Fitting Type : T type or, Weld On Adopter type Fittings are provided for correct mounting of the
-Flow Sensor in the pipe line for the best performance.
Accuracy : +/- 1% of Full Scale if velocity is more than 0.5 m/s
Input Voltage : 12 to 24 VDC
Output : High frequency pulse output (30 to 70 Hz), so can be directly connected to the PLC�s.

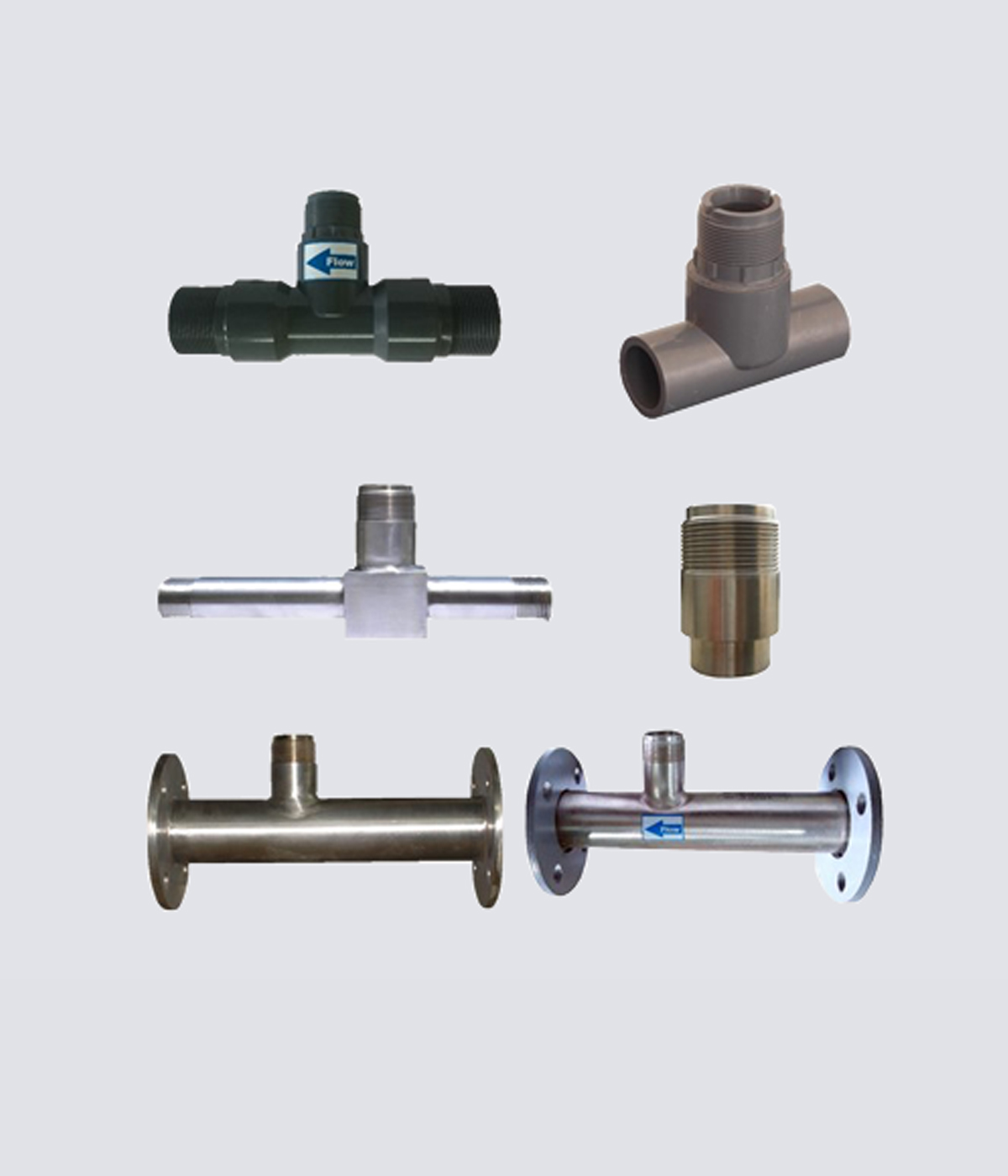

T Fitting : It is compulsary with PP or, SS 316 Flow Sensors for the better performance of the Sensor
(Selection from TYPE OF T-FITTINGS)
Meter Size NB: INCHES |
FLOW RATE MINIMUM M3/HR |
FLOW RATE MAXIMUM M3/HR |
15: �” |
0.26 |
2.6 |
25: 1” |
0.88 |
8.8 |
40: 1.1/2” |
2.04 |
20.4 |
50: 2” |
3.5 |
35 |
65: 2.1/2” |
6.3 |
63 |
80: 3” |
8.00 |
80 |
100: 4” |
14 |
140 |
125: 5" |
22 |
220 |
150: 6" |
32 |
320 |
175: 7" |
45 |
450 |
200: 8" |
56 |
560 |
225: 9" |
71 |
710 |
250: 10" |
88 |
880 |
275: 11" |
106 |
1060 |
300:12" |
126 |
1260 |
325:13" |
148 |
1480 |
350:14" |
172 |
1720 |
375:15" |
197 |
1970 |
400:16" |
224 |
2240 |
425:17" |
253 |
2530 |
450:18" |
284 |
2840 |
175:19" |
316 |
3160 |
500:20" |
350 |
3500 |
