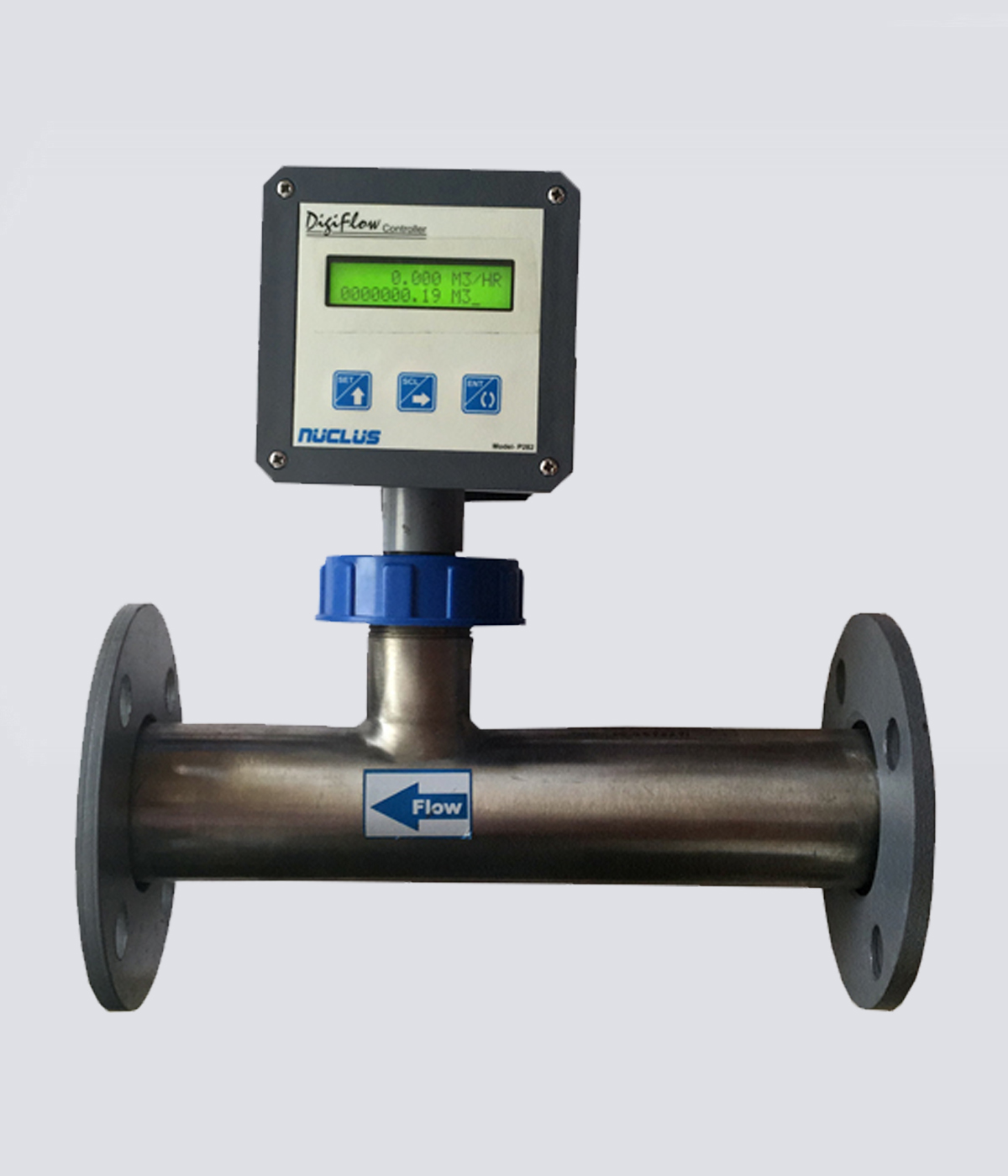

Insertion Paddle Wheel type Flow Totalizer

Insertion Paddle Wheel type Flow Totalizer

Digital flow rate Indicator with Totalizer with Relay/Batcher/Pulser (Models : P-282 & F-282)

Type of sensor : Insertion Paddle Wheel type Flow Rate Indicator with Totalizer
Max. % of Solids : 1 % of fluid volume, non-abrasive, non-magnetic, micron in dia.& length
Mounting : Field or, Panel
Pipe Line size : min. 15 mm up to 500 mm
Pressure drop : Less than 0.1 bar
Pulses : 4 Pulses each rotation
Accuracy : +/- 1% of Full Scale if velocity is more than 0.5 m/s
Repeatability : +/- 0.5%
Enclosure : Weather proof IP 65
Gland : PO7
Fitting material : ABS, SS304 or, SS316
Fitting Type : Threaded, Flanged, Weld on Adaptor
Flow Ranges : min. from 4.33 to 58000 LPM
Max. Operating Temperature: 60? C for PP Sensor with ABS fittings & 100?C for SS Sensor with SS Fitting
Sensor Cable Length : 0.5 mtrs for Field Mounted Meter & 3 mtrs for Panel Mounted Meter
Paddle : PVDF (Magnetic up to 100?C & Non Magnetic up to 80?C)
Indicator Housing : Polycarbonate
O-rings/Pin : Viton/Hastealloy C
Sensor Rod : PP or, SS316
Max. Working Pressure: 7 kg/cm2 for PP Sensor with ABS fittings and 12 Kg/cm2 for SS Sensor with SS fitting.
Display : 16 X 2 alpha-numeric LCD display with Backlit
Indicator unit dimensions: 110 mm (H) X 110 mm (W) X 150 mm (D)
Field selectable Units : M3/Hr., LPH, LPM, LPS, GPMUS, and GPMUK
Supply : 230 V AC +/- 15%, 50 H

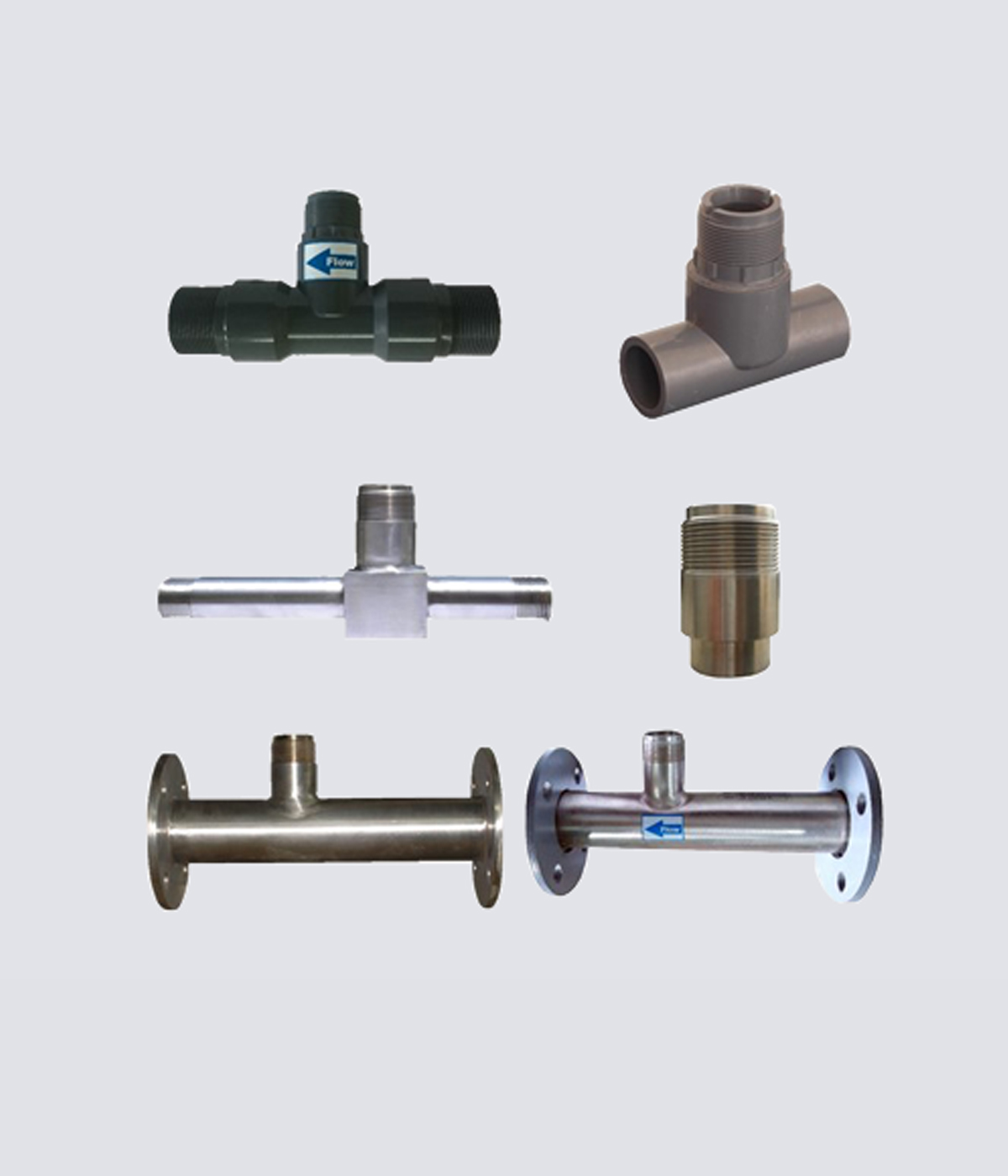

T Fitting : It is compulsory with PP or, SS 316 Flow Sensors(Selection from TYPE OF T-FITTINGS)
