Piston Type Differential Pressure Gauges

Piston Type Differential Pressure Gauges

Magnetic coupling Piston type Differential Pressure Gauges
(CE Certified model)

These gauges are suitable for Non-Magnetic Fluids only.

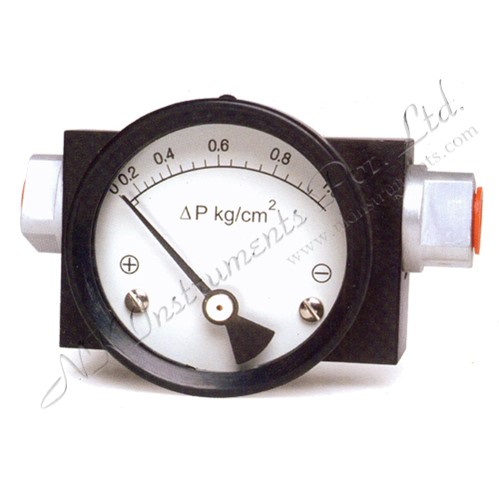

Model : 200 DPG
Range : various ranges from 0.25 to 10 bar
Dial Size : various options like 2”, 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia.
Connection : 1/4” NPT - F (Optional BSP)
Accuracy : + / - 2% FSD (Ascending)
Working Pressure : High static pressure - 100 Kg/cm2
Porting : Options like - In–Line, Back or, Bottom
Calibration : Non-Linear, spread over 65 degrees to 75 degrees Arc.
Sensing Element : Piston
Wetted parts : Aluminium, Brass, SS 316, Buna N, Viton
Max. Working Temp.: Max. 80 degree C if Buna N is used, it can be max. 200 degree C if Viton is used.
Enclosure : IP 65
Singe or, Duel Reed Switch Contacts can be provided along with DP Gauge, either in IP 65 or, in Flameproof enclosure
